Warmup Tectora Aluminium Diffuser 2 x 16mm Channels 0.5mm x 390mm x 1000mm

Warmup Tectora Aluminium Diffuser 2 x 16mm Channels 0.5mm x 390mm x 1000mm

Special Price £9.25 Regular Price £13.21
The Warmup Tectora System is designed for use within either battened or suspended timber floors, including TJI joist constructions.
- +
Add to Wish List
Warmup Tectora Aluminium Diffuser 2 x 16mm Channels 0.5mm x 390mm x 1000mm is available to buy in increments of 1
Size Guilde Delivery & Return
Delivery

All orders shipped with UPS Express.

Always free shipping for orders over US $250.

All orders are shipped with a UPS tracking number.

Returns

Items returned within 14 days of their original shipment date in same as new condition will be eligible for a full refund or store credit.

Refunds will be charged back to the original form of payment used for purchase.

Customer is responsible for shipping charges when making returns and shipping/handling fees of original purchase is non-refundable.

All sale items are final purchases.

Help

Give us a shout if you have any other questions and/or concerns.

Email:contact@domain.com

Phone: +1 (23) 456 789

Availability:In stock
SKU
WHS-TE-ALUDP1
Brand warmup
Warmup Tectora Aluminium Diffuser 2 x 16mm Channels 0.5mm x 390mm x 1000mm
The Warmup Tectora System is designed for use within either battened or suspended timber floors, including TJI joist constructions.

The Warmup Tectora System is designed for use within either battened or suspended timber floors, including TJI joist constructions.

Key features

  • Diffusion plates spread heat efficiently - Responsive, heat-diffusing aluminium plates
  • Insulation installed between floor joists - Without increasing floor build-up
  • No screeding required - Offers a dry installation method

For Use with Cradled Floors

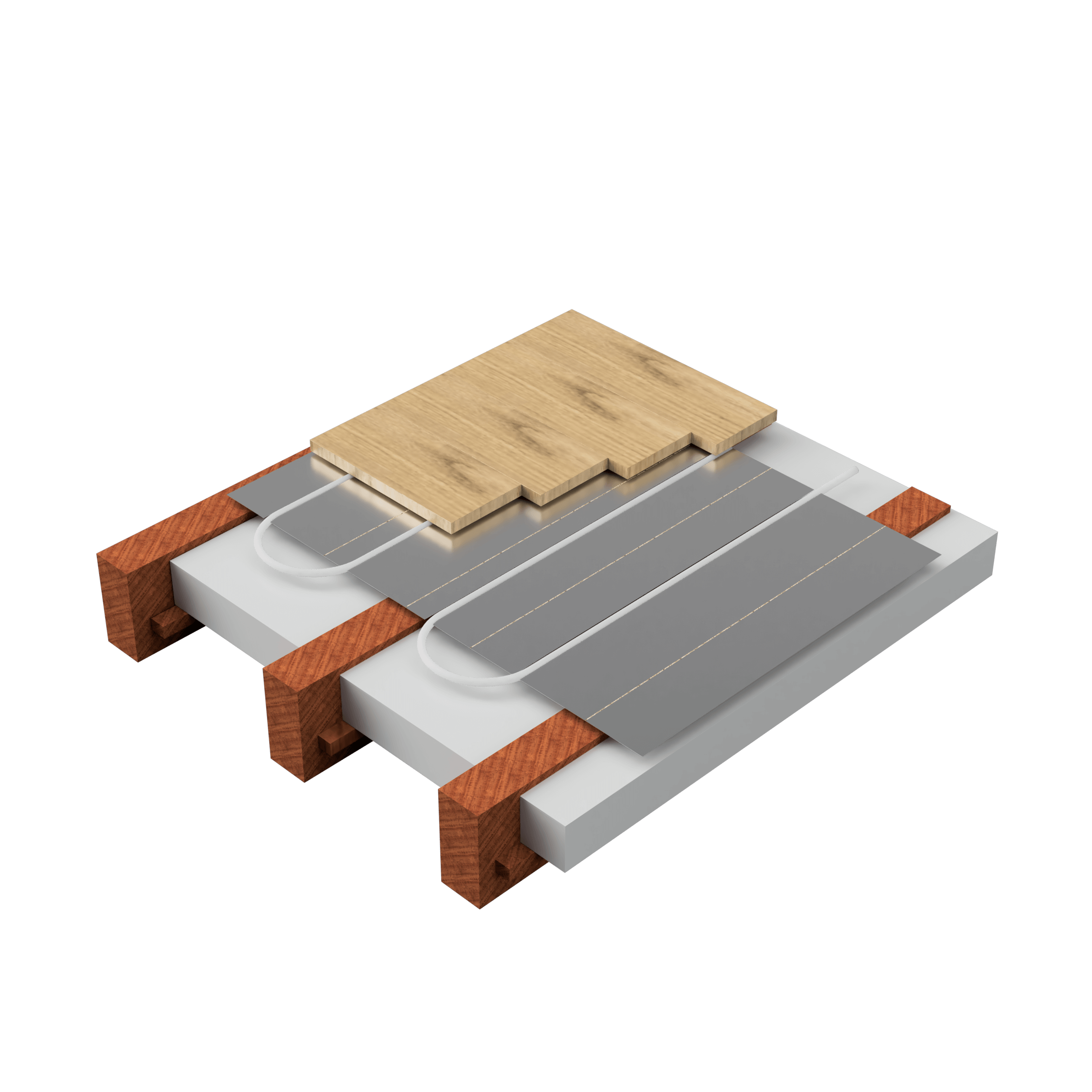

The Tectora Joisted Batten Floor System is particularly suitable where there is a sprung/cradled battened floor or floor joists. The heating system features insulation installed between floor joists with the heating pipes inserted within diffusion plates fitted above for optimal heat distribution. It is a dry-fitted hydronic system, requiring no screeding.

Compatible with All Floor Finishes The Tectora Joisted Batten Floor System is suitable for almost any floor finish, in particular wood or engineered wood but for installation under tiles as a final floor finish, additional layers of plywood or tile backer board may be required to create a rigid base. The system is suitable for use with all Warmup 16mm heating pipes.

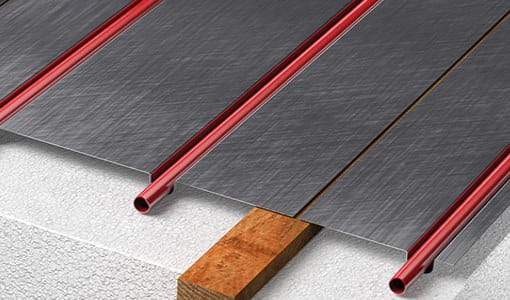

Diffusion Plates for Even Heat

The system is used in battened installations over a concrete subfloor; variable height floor battens are employed to create a void of between 50 to 100mm. The batons can be sprung or on cradles to create an acoustic floor.

Installation

For this installation, a diffusion plate system is generally used if standard installation types are not suitable. For installing as a joisted system, the rigid insulation is placed between the joists to support the diffusion plates, as they span the joists.

Specifications

Channels2 x 16 mm
Dimensions0.5 x 390 x 1000 mm
More Information
Price£13.21
Delivery Days2 to 3 Days
FeatureNo
BrandWarmup
Description

The Warmup Tectora System is designed for use within either battened or suspended timber floors, including TJI joist constructions.

Key features

  • Diffusion plates spread heat efficiently - Responsive, heat-diffusing aluminium plates
  • Insulation installed between floor joists - Without increasing floor build-up
  • No screeding required - Offers a dry installation method

For Use with Cradled Floors

The Tectora Joisted Batten Floor System is particularly suitable where there is a sprung/cradled battened floor or floor joists. The heating system features insulation installed between floor joists with the heating pipes inserted within diffusion plates fitted above for optimal heat distribution. It is a dry-fitted hydronic system, requiring no screeding.

Compatible with All Floor Finishes The Tectora Joisted Batten Floor System is suitable for almost any floor finish, in particular wood or engineered wood but for installation under tiles as a final floor finish, additional layers of plywood or tile backer board may be required to create a rigid base. The system is suitable for use with all Warmup 16mm heating pipes.

Diffusion Plates for Even Heat

The system is used in battened installations over a concrete subfloor; variable height floor battens are employed to create a void of between 50 to 100mm. The batons can be sprung or on cradles to create an acoustic floor.

Installation

For this installation, a diffusion plate system is generally used if standard installation types are not suitable. For installing as a joisted system, the rigid insulation is placed between the joists to support the diffusion plates, as they span the joists.

Specifications

Channels2 x 16 mm
Dimensions0.5 x 390 x 1000 mm
