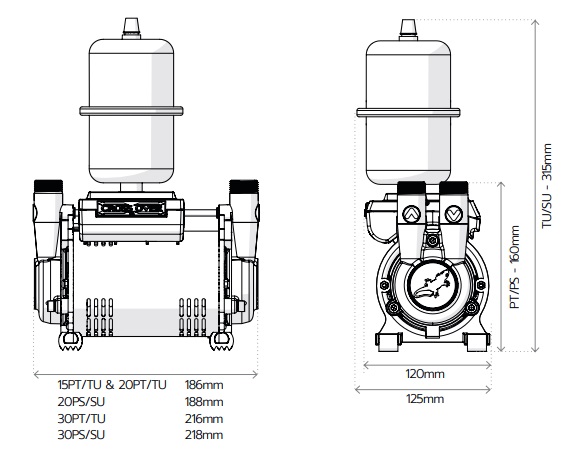

Length 217.8mm, Width 125mm, Height 315mm

CT Force 30SU is a 3.0 bar pressure, single ended, universal (negative head) brass pump. Reliable, high-quality and robust the CT Force 30SU has been designed with brass ends and impellers. The CT Force 30SU is compact and reliable offering an ideal solution to low water pressure. CT Force 30SU is suitable for positive and negative head, gravity fed systems. Warranty 5 years, WRAS approval 1210047, dBA 42, Pump Type Regenerative, Mechanical seal Nitrile/PTFE/Ceramic, Anti-vibration feet 5 Years, Inlet Isolator(s) Yes, Flexible hoses 2, Pressure @ 16lpm (8lpm for singles) 2.1 Bar, Bar Pressure @ 8lpm(4lpm for singles) 2.6 Bar, Pressure @ Closed Head 3.0 Bar, Maximum Water Temperature 65°C, Pressure Vessel Air Pre- Charge N/A, Pump connections 3/4”BSP, Connections (UK) 3/4” Female x 15mm Push-Fit x 195mm long, Connections (ROI)* ¾” Female x 21mm Push-Fit x 195mm long, Type A.C Induction Motor, Duty rating Continuously Rated, Power Supply 230v, Current (full load) 1.9 Amps, Power consumption 410 Watts , Fuse Rating 3 Amps, Power cable (pre-wired) 1.5 Meters, Enclosure Protection (IP Rating) IPX3
