Bath drain and overflow are combined in one element. Hidden beneath the base of the tub, the electric fitting is truly aesthetic. The lack of a visible overflow means that nothing detracts from the beauty of the bath design, particularly in the case of free-standing tubs. The specially designed electric controls with integrated pressure sensor opens the plughole as soon as the water has risen beyond a certain level.

The control box with emergency battery and the mains unit must be integrated in two easily accessible flush-mounted sockets outside the bath using the 8-metre cable. A 230 V power connection is required.

Technical notes

Pop-up wastes with no visible overflow. The overflow function is provided by a pressure sensor integrated in the pop-up waste that records the water level in the bath.

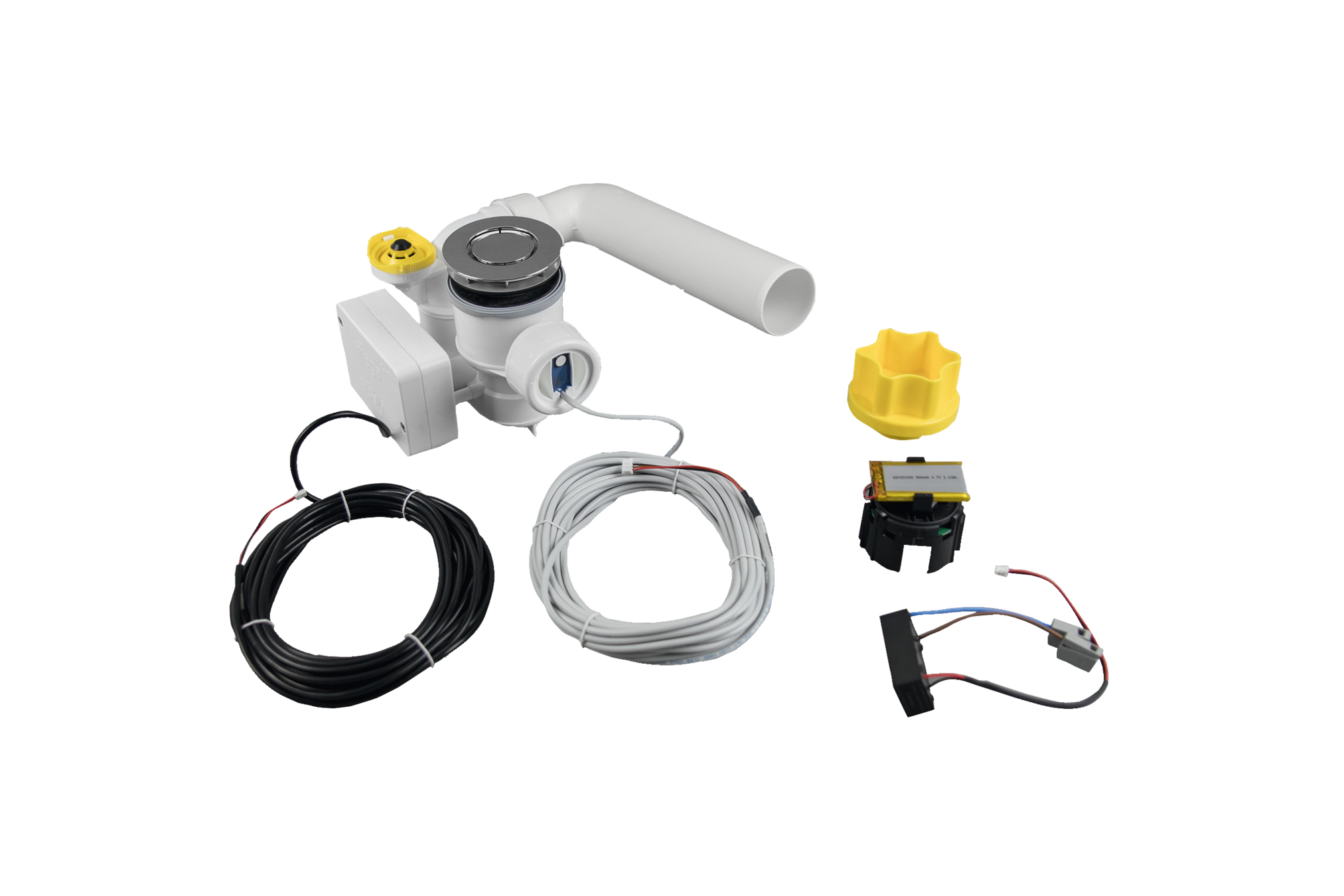

Included in the delivery of the pop-up waste are a control box, a 12-volt mains unit and two 8-m control cables. The control box, which includes an emergency battery, and the mains unit need to be integrated using the 8-m cable in two accessible flush-mounted boxes outside the bath.

A 230-volt power connection is required there.

The control cable needs to be laid from the concealed socket to under the bath for connection to the fitting.

The baths need to be ordered with the ending oUeL.
